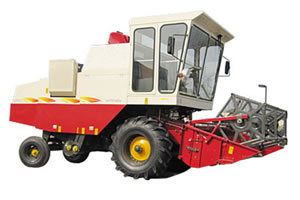

Full-Feeding Wheeled Combination Harvester

Full-Feeding Wheeled Combination Harvester



Description:
As a kind of farm equipment, the full-feeding wheeled combination harvester can not be easily tangled up by weeds as it is equipped with protecting wire net at stepless speed-change wheel.

Features:
1. In order to increase the separating area, the outlet of straw-discharging at threshing room uses the grid structure instead of punched concave.
2. The pin roll diameter of steering axle hydro-cylinder can be changed from 14mm to 16mm.
3. The full-feeding wheeled combination harvester can not be easily tangled up by weeds as it is equipped with protecting wire net at stepless speed-change wheel.
4. The transmission efficiency can be increased by changing the power output pulley into quadruplet.
5. The grain-unloading speed can be increased by 10-15% to reduce the unloading time.
6. The full-feeding wheeled combination harvester becomes more durable by increasing the driving shaft diameter of sieve box to 5mm.
7. It is equipped with strengthened steering axle.
8. The full-feeding wheeled combination harvester is equipped with strengthened reel bat and rear wheel gauge, and adjustable steering rear axle.
9. Rear brake is available on the full-feeding wheeled combination harvester.

Parameters:

Cutting width (m) 2.36 Tyre model/pressure 15-24/10-15, 0.18-0.2
Feeding capacity (kg/s) 2.0 Min. turning radius(m) Left 4.4-4.5/
Right 4.2-4.3
Engine model 4108/4110 Grain tank( m3) 1300-1500/1.3
Engine power (kw/hp) 61/83 (66.2/90) Oil tank (L) 165
Weight (kg) 4400 Threshing drum 500/550
Wheel gauge (mm) 1.7(front) 1.39-1.59(rear) Overall dimension (mm) 5600×2620×2910

Shanghai Longji Construction Machinery Company is a professional manufacturer and supplier of full-feeding wheeled combination harvester in China. We supply all kinds of construction and engineering equipments like earthmoving machine, road construction machinery, concrete equipment, quarry and mining equipment, trucks, cranes, etc. All our products are well received among customers from Russia, Brazil, Congo, Ghana, Nigeria, Gambia, Kenya, Tanzania, etc. We offer OEM service upon request. If you need full-feeding wheeled combination harvester, please don't hesitate to contacts us.
