Description of Belt Conveyor:

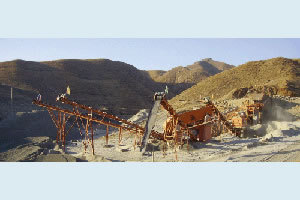

This belt conveyor is mainly used to transfer sandy and lump materials, or packaged materials   in mining, metallurgical and coal industry. And based on different transferring equipment, this transfer system can be operated independently or together with other transfer devices. It can be used in stationary and mobile crushing plants.
It can work normally at the temperature from -20℃ to 40℃., and the temperature of materials to be transferred should be lower than 50℃. And according to different classification methods, the types of it are as follows:
1.Driving method:
STD-mechanical drive: it’s driven by cycloidal pinwheel reducer with an outdoor motor, and chain-drive mechanism.

Belt Conveyor

Belt Conveyor

Mechanical drive series: it is designed with upside-down and belt-drive mechanism.
Electric rotor drive series: it is driven by electric rotor.
2.Installation method:
Fixed series: it is directly installed on the foundation.
Portable series: it can be easily and freely moved and its capacity is adjustable.
3.Structure method:
This belt conveyor has three different structures: U-steel, frame, and truss.

NOTE:
There are two kinds of conveyors, one equipped with repairing walkway and the other not. When ordering this kind of device, customers should better give us clear instruction in advance.

Specifications of Belt Conveyor:

Belt width (mm) Belt length (m) / Power (Kw) Belt speed (m/S) Capacity (t/h)
400 ≤12/1.5 12~20/2.2 20~25/3 0.8~2.0 40~80
500 ≤12/3 12~30/4 20~30/5.5 0.8~2.0 78~191
650 ≤12/4 12~20/5.5 20~30/7.5 0.8~2.0 131~323
800 ≤10/4 10~15/5.5 15~25/7.5 1.0~2.0 278~546
1000 ≤10/5.5 10~20/7.5 20~25/11 1.0~2.0 435~853
1200 ≤10/7.5 10~20/11 20~25/15 1.0~2.0 655~1284

Note: This specification is just for reference, and changes will be subject to the products.

Shanghai Longji Construction Machinery Company is a professional manufacturer of belt conveyor in China. We can also provide our clients with a wide selection of construction and engineering equipment, such as vibrating screen, impact crusher, earthmoving machine, road construction machinery, concrete equipment, mining equipment, trucks, cranes, wheel loader, road rollers, crawler excavator, semi-trailer truck, water truck, dump truck, concrete mixer plants, truck cranes, crawler crane, pavers, and more. All of our products are manufactured strictly according to the relevant ISO standards and we also offer OEM services upon request. With high quality and reasonable price, our products have been very popular among clients in many countries, like Russia, Brazil, Congo, Ghana, Nigeria, Gambia, Kenya, Tanzania, and so on. If you need belt conveyor, please contact us freely.
