Description of Mining Water Truck:
The mining water truck is used to transport water in mining site. This off-highway truck is equipped with sprinkle in front or rear, water cannon, as well as CLW pump fire valve, water valve, and filter gauze. This mining water truck can also be used as medicine car by adding the powder charge, pneumatic valve, spraying medicine apparatus. It features in the reliable, durable, dependable. What more, rugged construction and easy maintenance procedures ensure long life with low operating costs

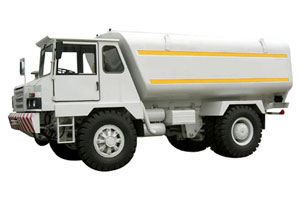

Mining Water Truck
Specifications of BZKW20 Mining Water Truck:
| Vehicle main technical parameter | |
| Payload | 20000kg |
| G.V.W. | 36000kg |
| Overall dimensions (L×W×H) | 7500×2950×3380mm |
| Wheel bass | 3600mm |
| Track | Front: 2350mm Rear: 2070mm |
| Top speed | 38km/h |
| Max.gradeability | ≥29% |
| Min. turning radius | ≤8.5m |
| Tank capacity | 20000L |
| Working pressure | (800-1000) kpa |
| Spray width | 12-25m |
| Spray distance | ≥40m |
| Spray quantity | 0.45-1kg/㎡ |
| Model of tyres | 14.00-24 |
| Electrical system voltage | 24V |
| Engine | |
| Model | Cummins NT855-C250 |
| Bore X Stoke | 140 X152mm |
| Total displacement | 14L |
| Max. power | 187kw/2100r/min |
| Max.torque | 1019N.m/1500r/min |
| Clutch | |
| Type | Double-plate dry clutch14" |
| Transmission | |
| Model | Fuller 8JS 118C with 7forward and 1 reverse |
| Drive ratio: Forward Gears 1 | 8.03 |
| Drive ratio: Forward Gears 2 | 5.32 |
| Drive ratio: Forward Gears 3 | 3.36 |
| Drive ratio: Forward Gears 4 | 2.54 |
| Drive ratio: Forward Gears 5 | 2.39 |
| Drive ratio: Forward Gears 6 | 1.58 |
| Drive ratio: Forward Gears 7 | 1.00 |
| Drive ratio: reverse Gears 8 | 8.00 |
| Front Axle | |
| Type | Heavy-duty seamless steel tube welded. |
| Toe in | 0-3mm |
| Drive axle | |
| Type | Double reduction, full-floating axle shaft. Cast-steel axle housing. |
| Central reduction ratio | 4.14:1 |
| Epicyclic reduction ratio | 3.33:1 |
| Total ratio | 13.78:1 |
| Steering | |
| Type | Hydraulic assisted power steering. |
| Model | GX110C |
| Working pressure | 14MPa |
| Suspension | |
| Type | Semi-elliptic leaf springs with rubber bumper. Front suspension has individual absorbers. |
| Cabin | |
| Type | Ergonomically designed, all steel construction, left hand drive cabin with adjustable seat that is fully thermal and noise insulated. Instrumental panel with gauges, warning and indicator lamps. All controls and levers are located for ease of operation. Automotive safety glass all round for maximum operator protection. |
| Water Tank | |
| Type | Steel plate weldbed |
Shanghai Longji Construction Machinery Company is a professional manufacturer and supplier of mining water truck in China. We supply all kind of construction and engineering equipments like wheel loader, road rollers, crawler excavator, semi-trailer truck, mining water truck (water carts), dump truck, concrete mixer plants, truck cranes, crawler crane, pavers and other products. We assemble our quality components according to the ISO quality management system, and all our products are all manufactured in strict accordance with ISO14001 environmental management standard. As the matter those advantages, our products are widely exported to Russia, Brazil, Congo, Ghana, Nigeria, Gambia, Kenya, and Tanzania and gain high reputation among our customers. We offer OEM service upon request. If you need mining water truck, PLS don't hesitate to contacts us.
-
