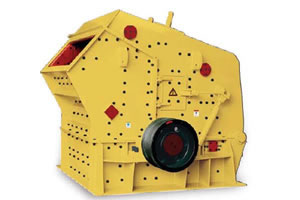

Description of Impact Crusher:
Our impact crusher is mainly used to crush ores and rocks with compression strength less than 350Mpa, and it can also be used to make fine stones in construction of highway, airport, buildings, and more. It is widely used in mining, cement industry, and such.

Features of Impact Crusher:
1.High chrome in the blow bar.
2.Hydraulic or manual open switch.
3.Special shape impact plate.
4.Connection with locking sleeve assembly.
5.Big crushing ratio and high-efficiency crushing.

Impact Crusher

Impact Crusher

Technical Parameters of Impact Crusher:

Model Size of feed opening Max. feeding size Capacity Electric motor power Weight Overall dimensions
(mm×mm) (mm) (t/h) (KW) (t) (mm)
PF-1007 820×700 300 24-45 55 9.5 2400×1558×2660
PF-1010 1170×720 350 50-80 75 10 2520×1900×2200
PF-1210 1090×465 350 80-130 110 14 2638×2053×2810
PF-1214 1440×465 350 100-160 132 18 2580×2400×2810
PF-1315 1532×560 350 140-200 200 19.3 3007×2748×2556
PF-1316 1690×859 350 150-220 200 19.5 3096×2850×2667
PF-1320 2030×800 325 280-320 400 29.7 3280×3200×2613
PF-1515 1580×850 350 220-280 315 28.3 3550×2835×3217

Shanghai Longji Construction Machinery Company is a professional manufacturer of impact crusher in China. We can also provide our clients with a wide selection of construction and engineering equipment, such as spring cone crusher, combined cone crusher, high efficiency complex crusher, earthmoving machine, road construction machinery, concrete equipment, mining equipment, trucks, cranes, wheel loader, road rollers, crawler excavator, semi-trailer truck, water truck, dump truck, concrete mixer plants, truck cranes, crawler crane, pavers, and more. All of our products are manufactured strictly according to the relevant ISO standards and we also offer OEM services upon request. With high quality and reasonable price, our products have been very popular among clients in many countries, like Russia, Brazil, Congo, Ghana, Nigeria, Gambia, Kenya, Tanzania, and so on. If you need impact crusher, please contact us freely.
