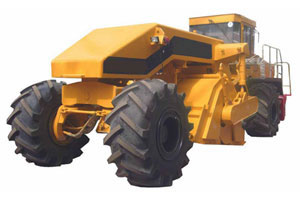

Description of LGRR625 Road Recycler:
The road recycler can mill, pulverize old asphalt road, and mix together with stable agent, cement (or lime) and water (or emulsified asphalt) into fresh road surface base, as well as used for stabilization in place of soil material with lime, cement, or asphalt in road constructions. It features in efficient, economical and environmental for the urban and rural road rebuilds.

Road Recycler

Road Recycler

Specific of LGRR625 Road Recycler:

Engine
Model Cummins KTA19-C525
Rated power 392 Kw
Rated speed 2100 r/ min
Cooling type Water cooled
Electrical system 24 V
Starting type Electrical
Driving system
Front wheel drive piston motor drive axle
Dear wheel drive dual piston motor reducer
Travel speed 0-200 m/min
Gradeability 50%
Steering System
Type Central articulated rear wheel steering
Articulated angle 30°
Steering angle 30°
Steering radius 7400 mm(outside)
Brake system
Work brake Hydraulic neutral brake
Parking brake Front wheel off-air /Rear wheel off-oil
Working specification
Max. working width 2430 mm
Max. working depth 400 mm
Driving model of rotor Hydraulic
Side shift distance of rotor 200 mm
Number of rotor 210
Dia.of rotor 1300 mm
Spray system Piston motor water pump
Regeneration liquid 870 L/min
Ground clearance 400 mm
Wheel base 5860 mm
Tread 2×2250 mm
Weight
Front load 13000 kg
Rear load 13000 kg
Operation weight 26500 kg
Overall dimension 9855×3000×3558 mm

Shanghai Longji Construction Machinery Company is a professional manufacturer and supplier of road recycler in China. We supply all kind of construction and engineering equipments like wheel loader, road rollers, crawler excavator, semi-trailer truck, water truck (water carts), dump truck, concrete mixer plants, truck cranes, crawler crane, pavers, road recycler and other products. As a one-stop service supplier, Shanghai Longji is committed to offering high quality, reliable products and service on time, on delivery and on budget, so that to keep your project running smoothly and on schedule. As the matter those advantages, our products are widely exported to Russia, Brazil, Congo, Ghana, Nigeria, Gambia, Kenya, and Tanzania and gain high reputation among our customers. We offer OEM service upon request. If you need road recycler, PLS don't hesitate to contacts us.
