Description of Down the Hole Drilling Rig (DTH Drilling Rig):
The down the hole drilling rig (short as DTH drilling rig) HC725, which is also called HC725 borehole machines, is extensively used engineering machinery in mining work. The machine can be used for digging holes for water and drilling blast holes on mines. Our down the hole drilling rig (DTH drilling rig) with the features of tracked drilling carriage, self-powered, energy saving, low working noise, great amplitude modulation capacity, using motor and control valve from Germany and Japan, can drill rough and rugged terrains and land forms where other drills are unable to operate. What more, the 10~20m3/min air delivery compressor adapted can ensure hole down 30m or 35m, and drill your well much quicker with an emphasis on safety.

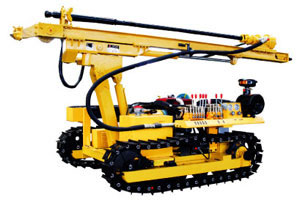

Down the Hole Drilling Rig

Down the Hole Drilling Rig (DTH Drilling Rig)

Specifications of HC725 Down the Hole Drilling Rig (DTH Drilling Rig):

Engine
Model Cummins 4BTA
Type Direct injection, turbocharged, water cooled
Rated power 93 KW
Rated speed 2200 rpm
Main Technical Specification
Tracked drilling carriage
Rock rigidity f=6~20
Diameter of drill hole 60~130 mm
Depth of drill hole 25 m
Traveling speed 2 km/h
Grade ability 25°
Rotation speed 0~70 rpm
Working pressure 0.5~1.4 MPa
Air consumption 7~12 m3/min
Compressor
Type Screw rotating one stage compression oil cooled
Displacement 10.2 m3/min
Pressure 0.7~1.0 MPa
Lubricating mode Forced lubricating according to lubricating compression
Drive mode Coupler direct
Volume of lubricating oil 60 L
Type
Type size 6.5-16
Type pressure 0.6 Mpa
Tread 1560 mm
Dimensions
Tracked drilling carriage
Overall length 4250 mm
Overall width 1980 mm
Overall height 2260 mm
Compressor
Overall length 3360 mm
Overall width 1850 mm
Overall height 1850 mm
Connector size R1.1/2″x1, R1″x2
Max. working altitude 3000 m
Weight
Tracked drilling carriage 3000 Kg
Compressor 21000 Kg
Main Features
Tracked drilling carriage
Self-powered high efficiency
Energy saving, lower noise, less operation cost
Wide range of usage, easy for maintenance
Major components such as motor, control valve, made in Germany and Japan
Large scope amplitude modulation capacity
Compressor
Advanced microprocessor monitoring all changes for compressed air demand, lowering air consumption
Motor, mounted roller, ball bearing made in Germany
Advanced separator and filter insuring residual oil content less than 3ppm
Aluminum radiator easy for cleaning
Anti-high temperature pipe and connector preventing oil leakage
Optional
10~20m3/min air delivery compressor series
Depth of drill hole with 30m, 35m

Shanghai Longji Construction Machinery Company is a professional manufacturer and supplier of down the hole drilling rig (DTH drilling rig) in China. We supply all kind of construction and engineering equipments like wheel loader, road rollers, crawler excavator, semi-trailer truck, water truck (water carts), dump truck, concrete mixer plants, truck cranes, crawler crane, pavers, down the hole drilling rig (DTH drilling rig) and other products. We assemble our quality components according to the ISO quality management system, and all our products are all manufactured in strict accordance with ISO14001 environmental management standard. As the matter those advantages, our products are widely exported to Russia, Brazil, Congo, Ghana, Nigeria, Gambia, Kenya, and Tanzania and gain high reputation among our customers. We offer OEM service upon request. If you need down the hole drilling rig (DTH drilling rig), PLS don't hesitate to contacts us.
