Description of Spring Cone Crusher:
Our PY series of spring cone crushers are specially designed for crushing various kinds of ores and rocks with medium or above medium hardness degree. And it is widely used in metallurgy, construction, road building, chemical and phosphatic industries. It is appropriate for crushing hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, basalt, gritstone, and more.
Its spring safety system is an overloading protection system which make metal pass through the crushing chamber in order to avoid damaging the cone crusher, and this system can make use of dry oil and water as two kinds of sealed formation to separate plaster powder and engine oil, as well as to make sure reliable and stable performance.

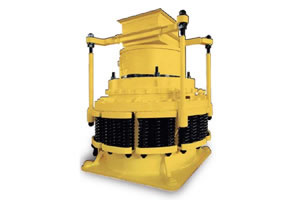

Spring Cone Crusher

Spring Cone Crusher

Based on the size of feeding and fineness of crushed materials, our spring cone crusher can fall into three types: standard type (PYB), medium type (PYZ), and short head type (PYD). The PYB is used for medium crushing; the PYZ is appropriate for medium and fine crushing; and the PYD is for super fine crushing.

Features of Spring Cone Crusher:
1.High productivity and high quality.
2.Less machine break time.
3.Firm structure and easy adjustment.
4.High efficiency and convenient operation.
5.Easy maintenance and cost saving.
6.High crushing ability for middle, fine, super-fine crushing.

Technical Parameters of Spring Cone Crusher:

Model Diameter  of the conical chamber Max. feeding size Adjustable range of discharge opening Capacity Electric motor power Swing frequency of drive-shaft Weight Overall dimensions
(mm) (mm) (mm) (t/h) (KW) (r/min) (t) (mm)
PYB900 900 115 12-50 50-90 55 333 11.2 2692×1640×2350
PYZ900 900 60 5-20 20-65 55 333 11.2 2692×1640×2350
PYD900 900 50 3-13 15-50 55 333 11.3 2692×1640×2350
PYB1200 1200 145 20-50 110-168 110 300 24.7 2790×1878×2844
PYZ1200 1200 100 8-25 42-135 110 300 25 2790×1878×2844
PYD1200 1200 50 3-15 18-105 110 300 25.3 2790×1878×2844
PYB1750 1750 215 25-60 280-480 160 245 50 3910×2894×3809
PYZ1750 1750 185 10-30 115-320 160 245 50 3910×2894×3809
PYD1750 1750 85 5-15 75-230 160 245 50 3910×2894×3809
PYB2200 2200 300 30-60 590-1000 280 220 80 6440×2900×5057
PYD2200 2200 100 5-15 120-340 280 220 81.4 6440×2900×5057

Shanghai Longji Construction Machinery Company is a professional manufacturer of spring cone crusher in China. We can also provide our clients with a wide selection of construction and engineering equipment, such as combined cone crusher, high efficiency complex crusher, combined fine crusher, earthmoving machine, road construction machinery, concrete equipment, mining equipment, trucks, cranes, wheel loader, road rollers, crawler excavator, semi-trailer truck, water truck, dump truck, concrete mixer plants, truck cranes, crawler crane, pavers, and more. All of our products are manufactured strictly according to the relevant ISO standards and we also offer OEM services upon request. With high quality and reasonable price, our products have been very popular among clients in many countries, like Russia, Brazil, Congo, Ghana, Nigeria, Gambia, Kenya, Tanzania, and so on. If you need spring cone crusher, please contact us freely.
