Description of CSF Combined Fine Crusher:
Our CFS combined fine crusher is specially designed for rough, medium, fine, and super fine crushing of materials with medium and low hardness, and it is widely used in cement industry, electricity field, coke industry, mining area, and many other industries. It is especially suitable for crushing limestone, slag, coal gangue, coal, and so on.
Our CSF combined fine crusher is developed on the basis of German technology and some structural features of crushers from foreign companies. And it enjoys all the advantages users can find in the impact crusher, hammer crusher, and ring-hammer crusher.
They have already passed through the industrial tests, high-efficient, energy-saving, and suitable for super-fine crushing.

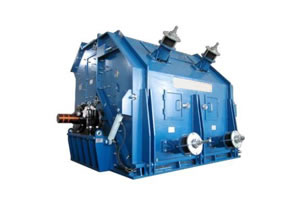

CSF Combined Fine Crusher

CSF Combined Fine Crusher

Advantages of CSF Combined Fine Crusher:
1. It has undergone various industrial tests to ensure its reliable performance, and high efficiency.
2. It has three stages of crushing into itself.
3. This CSF combined fine crusher owns automatic lubrication system.
4. Easy to maintain; safe to operate.
5. Less wearing parts; long service lifespan; hydraulic or mechanical gap adjustment system.

Technical Parameters of CSF Combined Fine Crusher:

Model CSF1008 CSF1010 CSF1312 CSF1314 CSF1316 CSF1414 CSF1616
Rotor diameter(mm) 1000 1000 1300 1300 1300 1400 1400
Rotor length (mm) 855 1005 1200 1400 1600 1400 1600
Rotation speed (r/min) 985 985 985 985 985 741 744
Motor power (kw) 55/75 75/90 160/185 220/250 280/315 200 450/500
Hammer quantity 30 36 45 54 63 54 84
Machine weight 8.6 9.5 17.5 19.5 22.1 20.3 34.3
Feeding size (mm) ≤50 ≤110 ≤50 ≤110 ≤60 ≤80 ≤60 ≤80 ≤60 ≤80 ≤50≤110 ≤80 ≤60
Discharge size (mm) ≤1 ≤10 ≤1 ≤10 ≤1 ≤3 85-92%88%-93% ≤1 ≤3 85-92%88%-93% ≤1 ≤3 85-92%88%-93% ≤1 ≤10 ≤3 ≤1 85%-92%
Capacity (t/h) 15-25 20-30 50-60 65-75 80-90 50-60 280-330

Shanghai Longji Construction Machinery Company is a professional manufacturer of combined fine crusher in China. We can also provide our clients with a wide selection of construction and engineering equipment, such as sand maker, PLC vertical shaft impact crusher, vertical shaft impactor, earthmoving machine, road construction machinery, concrete equipment, mining equipment, trucks, cranes, wheel loader, road rollers, crawler excavator, semi-trailer truck, water truck, dump truck, concrete mixer plants, truck cranes, crawler crane, pavers, and more. All of our products are manufactured strictly according to the relevant ISO standards and we also offer OEM services upon request. With high quality and reasonable price, our products have been very popular among clients in many countries, like Russia, Brazil, Congo, Ghana, Nigeria, Gambia, Kenya, Tanzania, and so on. If you need combined fine crusher, please contact us freely.
