Description of Vibrating Feeder:
Our feeder series can be divided into two categories: vibrating feeder (GZD series) and linear feeder (ZSW series).
Two motors have been equipped in our vibrating feeders. And users can freely adjust the vibrating frequency to control feeding speed of stone materials, as well as to guarantee the smooth operation of production line. It can feed materials to crushing machine continuously, and do the primary sieving on raw materials.
It is widely used in crushing and screening plants of mining, construction materials, silicate and chemical industry, and such.

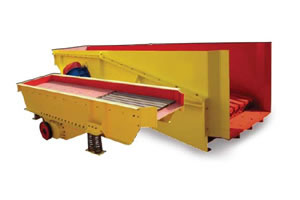

Vibrating Feeder

Vibrating Feeder

Features of Vibrating Feeder:
1.Able to feed materials in continuous and well-proportioned mode.
2.Easy to maintain.
3.Simple and reasonable structure.
4.It features stable vibration, reliable operation, and long service lifespan.

Technical Parameters of Vibrating Feeder:

Model Chute size Max. feeding size Capacity Eccentric shaft rotation Electric motor power Weight Overall dimensions
  (mm×mm)  (mm)   (t/h)    (kW) (t)      (mm)
GZD-250×75 2500×750 300 50-80 　 1.5×2 1.29 2580×1430×600
GZD-300×90 3000×900 450 80-100 　 3.0×2 2.96 3050×1430×1550
GZD-370×100 3700×1050 500 100-150 　 3.7×2 3.7 3980×1878×866
GZD-490×110 4900×1100 580 120-280 　 5.5×2 4 5200×1900×950
GZD-500×120 5000×1200 600 200-400 　 5.5×2 5.2 5450×2000×900
ZSW-380×96 3800×960 500 100-160 500-720 11 4.21 3882×1684×1340
ZSW-490×110 4900×1100 580 120-280 500-800 15 5.41 4957×1841×1365
ZSW-590×110 5900×1100 600 200-350 500-800 22 6.05 6000×1841×1365
ZSW-600×130 6000×1300 600 600-700 600-850 30 6.4 6028×2580×2083
ZSW-600×150 6000×1500 1000 600-700 600-850 37 7.05 6000×2231×1384

Shanghai Longji Construction Machinery Company is a professional manufacturer of vibrating feeder in China. We can also provide our clients with a wide selection of construction and engineering equipment, such as vibrating screen, jaw crusher, earthmoving machine, road construction machinery, concrete equipment, mining equipment, trucks, cranes, wheel loader, road rollers, crawler excavator, semi-trailer truck, water truck, dump truck, concrete mixer plants, truck cranes, crawler crane, pavers, and more. All of our products are manufactured strictly according to the relevant ISO standards and we also offer OEM services upon request. With high quality and reasonable price, our products have been very popular among clients in many countries, like Russia, Brazil, Congo, Ghana, Nigeria, Gambia, Kenya, Tanzania, and so on. If you need vibrating feeder, please contact us freely.
