Description of SVI Vertical Shaft Impactor:
This SVI vertical shaft impactor is mainly used to produce sand as well as to crush stones. It is designed with two modes of crushing: “stone hitting stone”and“stone hitting iron and the two modes can be exchanged to work. The “stone hitting stone” technology can reduce abrasion between components, thus cutting down the operation costs.

Features of SVI Vertical Shaft Impactor:
1.Its final cubic products have high pileup density.
2.During the production process, the stone materials are capable of forming a protective bottom to avoid wearing the equipment, which make the equipment itself durable in use.

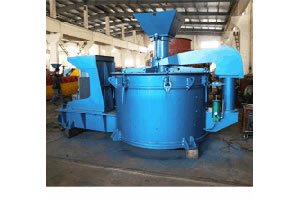

SVI Vertical Shaft Impactor

SVI Vertical Shaft Impactor

3.Some abrasive parts are made of wearing resistant materials with special hardness, and they are of small volume and light weight.
4.A lubrication oil station has equipped to do lubrication for major bearings in circulation so as to ensure constant oil supply.
5.Its automatic air circulatory system can remove dust and powder.
6.Automatic control and accident alert are possible.
7.Its upper cover can be uplifted by the hydraulic system and the operation is simple.
8.Almost unable to be influenced by water contained materials, and its max water content can be up to 8%.

9.It features new pattern, distinctive design, simple and reasonable structure, smooth operation, low operation costs, low energy consumption, high productivity, large crushing proportion, etc.

Technical Parameters of SVI Vertical Shaft Impactor:

Model Max. feeding  size Rotor diameter Rotation speed Capacity Electric motor power Weight Outer dimensions
(mm) (mm) (r/min) (tph) (kW) (t) (mm)
SVI600 60 610 1200 120 160 6.5 3670×182×2100
SVI800 75 813 1200 180 200 7.9 4037×2070×2375
SVI1000 80 1050 1200 240 250 12 4890×2386×2678
SVI1200 90 1260 1200 360 320 16 5300×2856×3168

Shanghai Longji Construction Machinery Company is a professional manufacturer of vertical shaft impactor in China. We can also provide our clients with a wide selection of construction and engineering equipment, such as sand recovery system, belt conveyor, earthmoving machine, road construction machinery, concrete equipment, mining equipment, trucks, cranes, wheel loader, road rollers, crawler excavator, semi-trailer truck, water truck, dump truck, concrete mixer plants, truck cranes, crawler crane, pavers, and more. All of our products are manufactured strictly according to the relevant ISO standards and we also offer OEM services upon request. With high quality and reasonable price, our products have been very popular among clients in many countries, like Russia, Brazil, Congo, Ghana, Nigeria, Gambia, Kenya, Tanzania, and so on. If you need vertical shaft impactor, please contact us freely.
