Description of Wheeled Bulldozer (Wheel Dozer):
The wheeled bulldozer, which is also called wheel dozer, is a kind of commonly used construction machinery. The principle of the machine work is to push outfitted dozer blades by essentially tractors, so as to clearing and grading land or paving the roads. These machines use a drive system of military industry technology, which is of big tractive force, high efficiency and good performance. It is with full hydraulic articulated steering and all wheel drive, which is easy and flexible to operate.

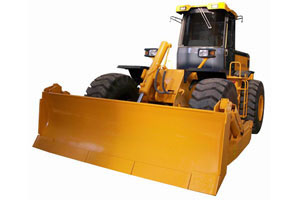

Wheeled Bulldozer

Wheeled Bulldozer (Wheel Dozer)

Type:
LGGQ320A

Specification of Wheeled Bulldozer (Wheel Dozer):

Engine
Model WD615.44
Type Vertical, four-stroke turbocharged
Rated power 235kW
Rated speed 2200rpm
Main Technical Specifications
Operation weight 14800kg
Grade ability 47%
Overall dimensions(L×W×H) 7194×3390×3380mm
Wheel base 3470mm
Tread 2240mm
Max. tractive force 118KN
Implement Hydraulic System
Pump type High pressure gear pump
Hydraulic pressure 16Mpa
Integral multi-valve DF32.2F3A
Working Equipment
Blade type Straight
Width 3390mm
Height 1000mm
Max digging depth 400mm
Max. lift above ground 1000mm
Transmission System
Torque ratio 3.7
Gear box Counter-shaft transmission
Bevel gear One-stage spiral bevel gear deceleration
Wheel reducer One-stage spur gear deceleration
Gear shifts(Forward/Reverse) F4/R4
Traveling speed (km/h)
Forward/ReverseⅠ 8/8
Forward/ReverseⅡ 16/16
Forward/ReverseⅢ 26/26
Forward/ReverseⅣ 48/48
Driving And Tyre
Driving type 4 wheel drived
Tyre size 23.5-25-16PR
Tyre pressure 0.3~0.32MPa
Braking System
Type of traveling braking Air-pushing-oil disc brake on four wheels
Type of parking braking Internal expanding with double horseshoe
Steering System
Type Co-axis flow amp, articulated  steering
Bore of cylinder/stroke 2-φ100mm×360mm
Working system pressure 15MPa
Steering angle 35°~36°
Electrical System
System voltage 24V
Battery 6-QW-120 (2pcs)
Lamp voltage 24V
Starting voltage of diesel 24V

Shanghai Longji Construction Machinery Company is a professional manufacturer and supplier of wheeled bulldozer (wheel dozer) in China. We supply all kind of construction and engineering equipments like wheel loader, road rollers, wheeled bulldozer (wheel dozer), crawler excavator, semi-trailer truck, water truck (water carts), dump truck, concrete mixer plants, truck cranes, crawler crane, pavers and other products. As a one-stop service supplier, Shanghai Longji is committed to offering high quality, reliable products and service on time, on delivery and on budget, so that to keep your project running smoothly and on schedule. As the matter those advantages, our products are widely exported to Russia, Brazil, Congo, Ghana, Nigeria, Gambia, Kenya, and Tanzania and gain high reputation among our customers. We offer OEM service upon request. If you need wheeled bulldozer (wheel dozer), PLS don't hesitate to contacts us.
