Light-duty Off-set Disc Harrow
1BQ-3.4 Trailed Harrow
1BQX-1.3 Mounted Harrow
1BQX-1.9 Mounted Harrow
1BQX-2.3 Mounted Harrow
1BQ-7.0 Trailed Harrow
Technical Specifications for 1BQX & 1BQ Series Light-duty Off-set Disc Harrow
Type | 1BQX—1.1 | 1BQX—1.3 | 1BQX—1.5 | 1BQX—1.7 | 1BQX—1.9 | 1BQX—2.3 | 1BQ—3.4 | 1BQ—4.4 | 1BQ—5.0 | 1BQ—5.5 | 1BQ—7.0 | |
Name | The 12-blades mounted harrow |
The 14-blades mounted harrow | The 16-blades mounted harrow | The 18-blades mounted harrow | The 20-blades mounted harrow | The 24-blades mounted harrow | The 42-blades harrow | The 54-blades harrow | The 60-blades harrow | The 66-blades harrow | The 80-blades harrow | |
Overall dimensions(mm) | L | 1590 | 1590 | 1905 | 1905 | 2305 | 2650 | 5360 | 5820 | 5820 | 6000 | 7200 |
W | 1230 | 1440 | 1600 | 1820 | 2000 | 2450 | 3400 | 4600 | 5200 | 5700 | 6400 | |
H | 830 | 830 | 1118 | 1118 | 1118 | 1280 | 1050 | 1050 | 1050 | 1050 | 1050 | |
Max. Working width (m) | 1.1 | 1.3 | 1.5 | 1.7 | 1.9 | 2.3 | 3.4 | 4.4 | 5.0 | 5.5 | 7.0 | |
Working depth(cm) | 8~14 | |||||||||||
No. of disc | 12 | 14 | 16 | 18 | 20 | 24 | 42 | 54 | 60 | 66 | 80 | |
Dia of disc(mm) | 460 | 510 | ||||||||||
Thickness of disc(mm) | 3 | 4 | ||||||||||
Disc spacing(mm) | 200 | 170 | ||||||||||
Weight(kg) | 200 | 220 | 245 | 265 | 300 | 500 | 1108 | 1520 | 1620 | 2800 | 3300 | |
Productivity(ha/h) | 0.7 | 0.84 | 0.97 | 1.1 | 1.3 | 1.5 | 1.72 | 2.45 | 3 | 3.4 | 4.2 | |
Linkage | Three-point mounted | Trailed | ||||||||||
Trans. Clearance(mm) | ≥280 | ≥280 | ≥200 | ≥200 | ≥200 | ≥200 | ≥160 | |||||
Matched power(kw) | 8.8-14.7 | 11-18.4 | 14.7-25.7 | 20.6-29.4 | 25.7-36.8 | ≥40.4 | ≥47.7 | ≥55 | ≥58.8 | ≥66 | >88 |

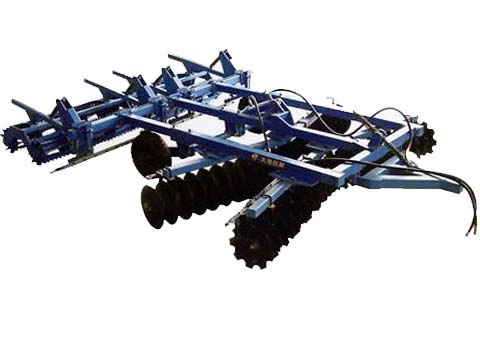

![](7-agriculture-equipment/5-3-1d.jpg)
1LZ-3.6
Technical Specifications for 1BQX & 1BQ Series Light-duty Off-set Disc Harrow
Type | 1LZ—3.6 | 1LZ—4.2 | 1LZ—5.4 | |
Name | 42 | 50 | 64 | |
Overall dimensions(mm) | L | 5360 | 5820 | 5820 |
W | 3400 | 4600 | 5200 | |
H | 1050 | 1050 | 1050 | |
Max. Working width (m) | 3.6 | 4.2 | 5.4 | |
Working depth(cm) | 8-14 | |||
No. Of disc | 42 | 52 | 64 | |
Dia of Type | 460×3 | |||
Disc spacing(mm) | 170 | |||
Weight(kg) | 2000 | 2600 | 3200 | |
Productivity(ha/h) | 2.28 | 2.66 | 3.33 | |
Linkage | Trailed | |||
Trans. Clearance(mm) | ≥160 | |||
Matched power(kw) | ≥51 | ≥58.8 | ≥73.5 |
